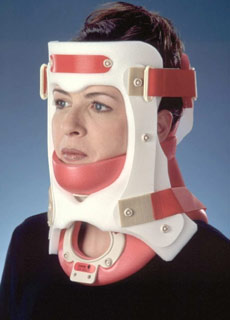

The RED Philadelphia® Head Immobilizer™ was designed in 1988 as an attachment to the RED Philadelphia Collar. When applied to the patient, it greatly restricts flexion, extension and rotation of the cervical spine.

As the patient recovers, the Head Immobilizer can be removed while allowing the Collar to remain on the patient.

May be used in conjunction with the RED Philadelphia Stabilizer attachment.

Every product we manufacture demonstrates our commitment to patient compliance and recovery through superior immobilization and comfort.

Features and Benefits:

  • Latex-free, non-toxic and hypoallergenic Plastazote® foam reduces skin irritation.

  • Adjustable bilateral Velcro® hook and loop fasteners ensure proper fit.

  • Posterior rigid plastic reinforcement piece limits movement.

  • Restricts cervical spine flexion, extension and rotation to promote patient recovery.

  • Conformance to the occipital region allows superior stability and comfort.
  • Water-resistant for bathing and aqua-therapy.

  • Easily customized for individual requirements.

  • No tools required to assemble.

  • X-ray, CT and MRI lucent.

  • Clean with mild soap and clean water.

  • May be used in conjunction with the RED Philadelphia Stabilizer attachment.

Measurement and Sizing:

The Adult RED Philadelphia Head Immobilizer will fit most average individuals when attached to the Philadelphia® Cervical Collar.

The Pediatric RED Philadelphia Head Immobilizer can be attached to both the Child and Infant Philadelphia® Cervical Collar.

Sizes: Adult and Pediatric.
For more information, please refer to Sizes: Product Table
Custom: Services

Application:
Proper application of the Head Immobilizer is important for immobilization and patient comfort. The two-piece design consists of a occipital support and a Head restraint which are packaged as a set.

Always maintain the patient's head in neutral alignment. These directions are guidelines only; follow a qualified healthcare provider's instructions.
1. Slide the plastic reinforcement of the Collar BACK piece through the top of the Head Immobilizer occipital support slots.

Slide the pieces together until the pieces are in alignment.
2. After the Head Immobilizer and Collar are in alignment, snap the pieces together until they are securely fastened.
3. After properly applying the Collar, slide Head Immobilizer over head and center under the patient's chin. Secure lower straps to Collar BACK piece.
4. Pull forehead straps simultaneously and with equal pressure toward the Collar BACK piece and fasten.
5. Verify that all components are centered on the patient and the patient is in neutral alignment.

Removal:
Before removing the Head Immobilizer and Collar, mark the position of the strap location to ensure re-application maintains the proper fit.

With the Head Immobilizer and Collar secured on the patient, loosen the Head Immobilizer straps on the RIGHT side and then on the LEFT side. To remove the Collar, unfasten the Velcro strap on the RIGHT side and then the LEFT side. Remove Head Immobilizer and Collar from the patient.

Cleaning:
Proper hygiene and product cleaning are an important part of a patient's recovery. In addition, it will keep the patient clean, comfortable and prevent skin irritation. A qualified healthcare professional will establish your cleaning routine.

After the Head Immobilizer and Collar are removed, gently clean the patient's neck and face; if there is skin irritation contact a qualified healthcare professional. The patient's neck and face should be dried completely before the Head Immobilizer and Collar are applied.

The entire Head Immobilizer and Collar can be cleaned with mild soap and clean water. The Head Immobilizer and Collar should be dried completely with a cloth or air-dried before they are applied to the patient. While a mild disinfectant is acceptable, do not use harsh chemicals or bleach.

Apply the Head Immobilizer and Collar as instructed by a qualified healthcare professional.
NOTE: This product is a single user device, use only on one patient, do not reuse on multiple patients. Follow a qualified healthcare provider's instructions regarding usage and infection control.
