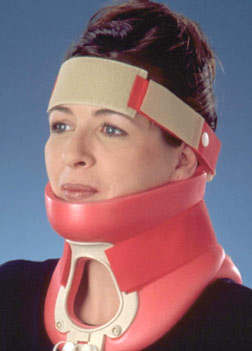

The RED Philadelphia® Halo™ was designed in 1988 as an attachment
to the RED Philadelphia Collar. When applied to the patient, it greatly
restricts rotation of the cervical spine.
As the patient recovers, the Halo can be removed while allowing the
Collar to remain on the patient.
May be used in conjunction with the RED Philadelphia Stabilizer attachment.
Every product we manufacture demonstrates our commitment to patient
compliance and recovery through superior immobilization and comfort.
|
 |
 |
|
|
|
|
|
|
- Latex-free, non-toxic and hypoallergenic Plastazote® foam
reduces skin irritation.
- Adjustable bilateral Velcro® hook and loop fasteners ensure
proper fit.
- VelStretch™ strap allows for flexibility in cases of restricted
blood flow.
- Posterior rigid plastic reinforcement piece limits movement.
- Restricts cervical spine flexion, extension and rotation to
promote patient recovery.
- Conformance to the occipital region allows superior stability
and comfort.
|
- Water-resistant for bathing and aqua-therapy.
- Easily customized for individual requirements.
- No tools required to assemble.
- X-ray, CT and MRI lucent.
- Clean with mild soap and clean water.
- May be used in conjunction with the RED Philadelphia Stabilizer
attachment.
|
|
 |
|
|
|
|
|
|
|
|
The Adult RED Philadelphia Halo will fit most
average individuals when attached to the Philadelphia Collar.
The Pediatric RED Philadelphia Halo can be attached
to both the Child and Infant Philadelphia Collar.
Sizes: Adult and Pediatric.
|
|
|
|
|
|
|
| For more information,
please refer to |
|
Sizes: |
|
Product
Table |
|
|
|
|
|
|
|
|
|
Custom: |
|
Services |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Proper application
of the Halo is important for immobilization and patient comfort. The
two-piece design consists of a occipital support and a VelStretch
strap which are packaged as a set.
Always maintain the patient's head in neutral alignment. These directions
are guidelines only; follow a qualified healthcare provider's instructions.
|
|
|
|
|
|
|
|
| 1. |
|
Slide the
plastic reinforcement of the Collar BACK piece through the top of
the Halo occipital support slots.
Slide the pieces together until the pieces are in alignment. |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2. |
|
After the
Halo and Collar are in alignment, snap the pieces together until they
are securely fastened. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3. |
|
After properly
applying the Collar, wrap the Velstretch strap around the patient's
head. Position the Velstretch material on the center of forehead. |
|
 |
|
|
|
|
|
|
|
|
| 4. |
|
Pull both
straps simultaneously and with equal pressure toward the Halo occipital
support. Slide straps through the buckels and fasten the straps. |
|
|
|
|
|
|
|
|
|
| 5. |
|
Verify that
all components are centered on the patient and the patient is in neutral
alignment. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Before removing the Halo
and Collar, mark the position of the strap location to ensure re-application
maintains the proper fit.
With the Halo and Collar secured on the patient, loosen the Halo strap
on the RIGHT side and then on the LEFT side. To remove the Collar,
unfasten the Velcro strap on the RIGHT side and then the LEFT side.
Remove Halo and Collar from the patient. |
|
|
|
Proper hygiene and product
cleaning are an important part of a patient's recovery. In addition,
it will keep the patient clean, comfortable and prevent skin irritation.
A qualified healthcare professional will establish your cleaning routine.
After the Halo and Collar are removed, gently clean the patient's
neck and face; if there is skin irritation contact a qualified healthcare
professional. The patient's neck and face should be dried completely
before the Halo and Collar are applied.
The entire Halo and Collar can be cleaned with mild soap and clean
water. The Halo and Collar should be dried completely with a cloth
or air-dried before they are applied to the patient. While a mild
disinfectant is acceptable, do not use harsh chemicals or bleach.
Apply the Halo and Collar as instructed by a qualified healthcare
professional. |
|
