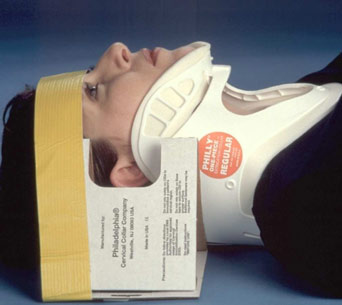

The Philly® Bloc-Head® Cervical Immobilization Device is constructed from water-resistant and wax-impregnated cardboard.

Movable stops ensure proper fit. Yellow adhesive strap included.

Every product we manufacture demonstrates our commitment to patient compliance and recovery through superior immobilization and comfort.

Features and Benefits:

  • Restricts flexion, extension and rotation to immobilize the cervical spine.

  • Constructed from water-resistant and wax-impregnable cardboard for use in adverse conditions.

  • Movable side stops ensure proper fit.

  • Essentially flat to efficiently manage storage where space is limited.

  • Yellow adhesive strap included.

  • X-ray, CT and MRI lucent.

  • Disposable design.

Measurement and Sizing:


Proper sizing of the Collar is important for patient immobilization and comfort. Always maintain the patient's head in neutral alignment. Follow a qualified healthcare provider's instructions.
For more information, please refer to Sizes: Product Table

Application:
Proper application of the Bloc-Head is important for immobilization and patient comfort. The one-piece design consists of a single piece with a yellow adhesive strap which is packaged as a unit.

Always maintain the patient's head in neutral alignment. These directions are guidelines only; follow a qualified healthcare provider's instructions.
Bloc-Head CID
  1. Remove plastic tape from Bloc-Head base (underside) and position on proper, clean surface (backboard). Place under patient's head and align opening with patient's ears.


  2. Press down on Bloc-Head base to secure. If required, fasten base to surface with additional tape.


  3. Fold both Bloc-Head side supports inward and attach Velcro loop to hook fastener on Bloc-Head base.
Yellow Strap
  1. Peel off outside papers - do not remove center paper.

  2. Press center paper against patient's forehead.

  3. Secure head to backboard.

Removal:
Before removing the Bloc-Head, mark the position of the Yellow adhesive strap and side support locations to ensure re-application maintains the proper fit.

With the Collar secured on the patient, unfasten the Yellow adhesive strap. Release the side supports and remove the patient from the Bloc-Head.

Cleaning:
This is a disposable, single user device. Discard after use.
NOTE: This product is a single user device, use only on one patient, do not reuse on multiple patients. Follow a qualified healthcare provider's instructions regarding usage and infection control.
