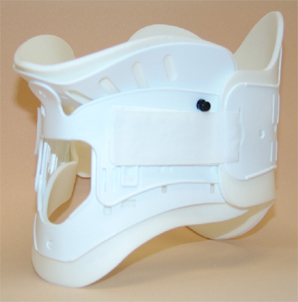

The Philly® C-Loc® Collar is completely injected molded from high-density polyethylene with foam padding and features our patented chin support.

Multi-Height Adjustment fits almost all Adults (4 positions) and Pediatrics (3 postions). Two-piece design is essentially flat, which enables efficient storage where space is limited.

Simply measure patient, adjust and lock selected height and apply. Either in a supine or seated position, application is quick and easy.

Every product we manufacture demonstrates our commitment to patient compliance and recovery through superior immobilization and comfort.


Features and Benefits:

  • Restricts flexion, extension and rotation to immobilize the cervical spine.

  • Multi-Height Adult adjustment. Adult (4 position) and Pediatric (3 position).

  • Injection molded polyethylene plastic body for improved rigidity and durability.

  • Latex-free, non-toxic and hypoallergenic foam reduces skin irritation.

  • Oversized trachea opening for quick access to carotid pulse monitoring and emergency tracheotomies.

  • Molded level chin support maintain patient in neutral alignment. Mandible support adapts to individual patient’s unique jaw line.

  • Adjustable bilateral Velcro® hook and loop fasteners ensure proper fit.

  • Essentially flat to efficiently manage storage where space is limited.

  • Open rear ventilation panel for fluid drainage, airflow and cervical spine palpitation.

  • Easily customized for individual requirements.

  • X-ray, CT and MRI lucent.

  • Clean with mild soap and water.

Measurement and Sizing:

Proper sizing of the Collar is important for patient immobilization and comfort. Always maintain the patient's head in neutral alignment. These directions are guidelines only; follow a qualified healthcare provider's instructions.
For more information, please refer to Sizes: Product Table



Height:
1.
 Measure the vertical distance from the top of the patient’s shoulder to the tip of the chin (Figure 1. “A”).
2. The measurement corresponds to the HEIGHT of the Collar. If the patient’s measurement falls between two consecutive sizes, apply the smaller size first.
Circumference:

3. Measure around the patient’s neck (Figure 2. “B”).
4. The measurement corresponds to the size CIRCUMFERENCE of the Collar. If the patient’s measurement falls between two consecutive sizes, apply the larger size first.


Alternative Sizing Method:


Use your fingers to measure the distance from the top of the patient’s shoulder to the tip of the chin.

Position your fingers against the FRONT side of the Collar from the plastic bottom edge to the top of the Velcro hook fastener.

Select the size closest to the height of your fingers.


Application:


Proper application of the Collar is as important as proper sizing for immobilization and patient comfort. The two-piece design consists of a FRONT piece and BACK piece which are packaged as a set.

Always maintain the patient's head in neutral alignment. These directions are guidelines only; follow a qualified healthcare provider's instructions.

Size Collar:
  Correspond the size of the patient in neutral position with the Collar.



Lock Size:

  Position the Collar with the selected size. Press the lock into the Collar until secured. Verify by attempting to readjust. If movement occurs, repeat procedure until the Collar is secure.


Adjust Size:

  To unlock, simply push the lock to return to its unsecured position. Determine the proper height for the patient and press the clip into the selected size. If movement occurs, repeat procedure until the Collar is secure


1.
After selecting the properly sized Collar, assemble the chin support by fastening it to the plastic FRONT piece.



2.
Apply the FRONT piece of the Collar to the front of the patient's neck. Center the Collar. The front arrow should point upward.




3.
The Velstretch retaining strap is brought around the back of the patient's neck and secured to the opposite side of the Collar FRONT piece.


Removal:

Before removing the Collar, mark the position of the Velcro strap location to ensure re-application maintains the proper fit.

With the Collar secured on the patient, unfasten the Velcro strap on the RIGHT side and then the LEFT side. Remove the Collar from the patient.




Cleaning:


Proper hygiene and product cleaning are an important part of a patient's recovery. In addition, it will keep the patient clean, comfortable and prevent skin irritation. A qualified healthcare professional will establish your cleaning routine.

The Collar can be cleaned with mild soap and clean water. The Collar should be dried completely with a cloth or air-dried before it is applied to the patient. While a mild disinfectant is acceptable, do not use harsh chemicals or bleach.

Apply the Collar as instructed by a qualified healthcare professional.

NOTE: This product is a single user device, use only on one patient, do not reuse on multiple patients. Follow a qualified healthcare provider's instructions regarding usage and infection control.

Made in
the USA
